MG AEROGRAPH TG-130 + COMPRESSOR TC1000AK ( with AUTO-STOP function )

TC-1000AK compressor with TG-130 airbrush by Magma.

One of the most popular modeling kits on the market.

Application:

• graphics on cars, motorcycles
• in modeling
• graphics on the body
• graphics on t-shirts
• graphics on ceramics, glass

The TC-1000AK model is the successor to the TC-100 model. The difference is that in the "A" model if you use the airbrush to spray, the compressor will run, and when you stop spraying, the compressor will stop.

In the previous model TC-100, regardless of whether you spray or not, the compressor always releases air.

Note: The Auto stop function works when the compressor knob is turned to minimum, otherwise it will not work, this action is a factory feature of the device.

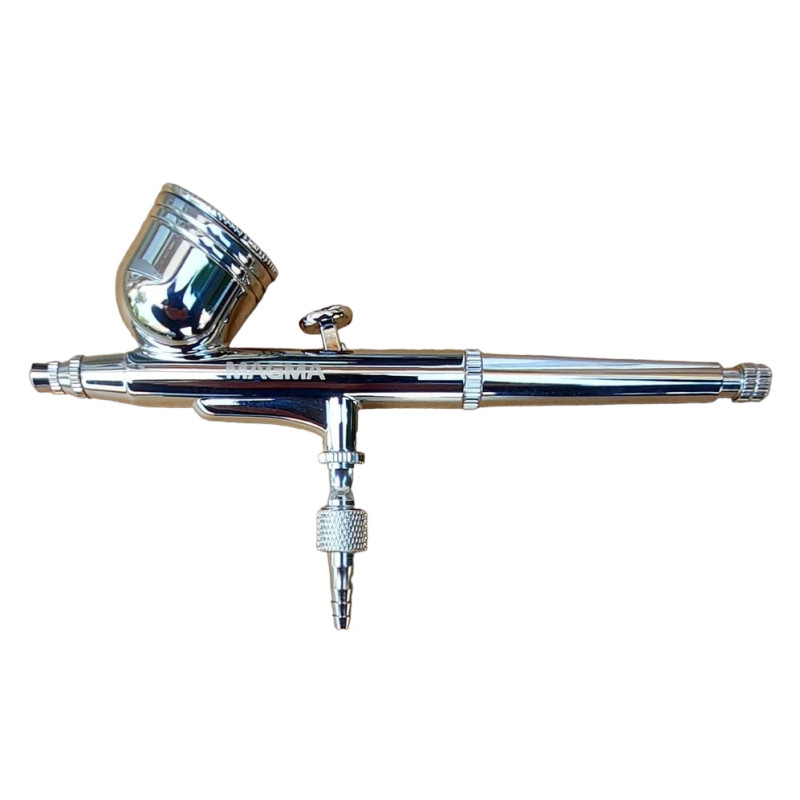

This is a dual action (double action) gravity feed airbrush, which means that with the button you adjust both the amount of air fed (down and up movements) and the amount of paint (back and forward movements).

Technical data of the airbrush:

• type of paint feed: gravity
• double action control
• working pressure 15-30 PSI
• capacity of paint container 7cm3
• the airbrush has a 1/8" threaded inlet, which is about 9.42mm
• the compressor has a 1/8" output.

The compressor is quiet - you can work in the apartment.

Technical data of the compressor:

• power supply 220 - 230V
• time of continuous operation max. 60 minutes
• working pressure max. 25 PSI
• dimensions: 110x100x60 mm

The set includes:

• compressor with 12V power supply
• tG-130 airbrush with nozzle and 0,3 mm needle
• packaging with instructions

The trigger of the airbrush during operation is pulled back with a finger, while the return movement to the front is performed by a built-in spring. Do not push the trigger forward by force, as this may damage the nozzle and/or firing pin - this type of damage is not subject to warranty repair.

Do not use nitro solvents or acetone (cause damage to the airbrush).

The product is not certified for use in painting food products (e.g., using paints to paint cakes, etc.)

*Follow the enclosed instruction manual.
