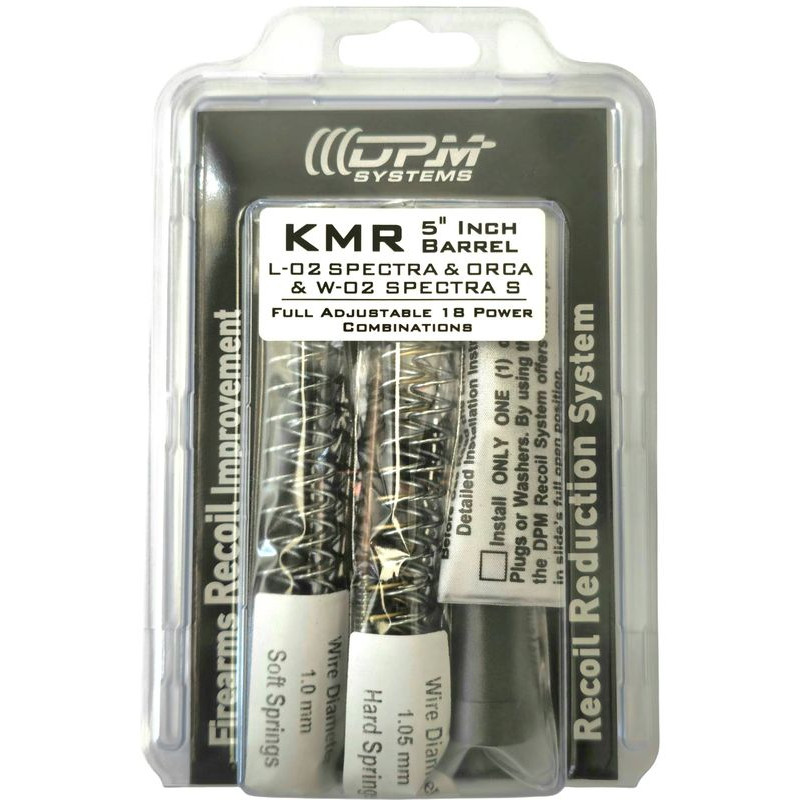

DPM KMR Ejection System for KMR L-02 Spectra, Orca & W-02 Spectra S - 5" (MS-KMR/2 / 400043)

DPM Mechanical Recoil Reduction System for:

• KMR L-02 SPECTRA and ORCA
• W-02 SPECTRA S - 5-INCH BARREL - 15 USER SETTINGS

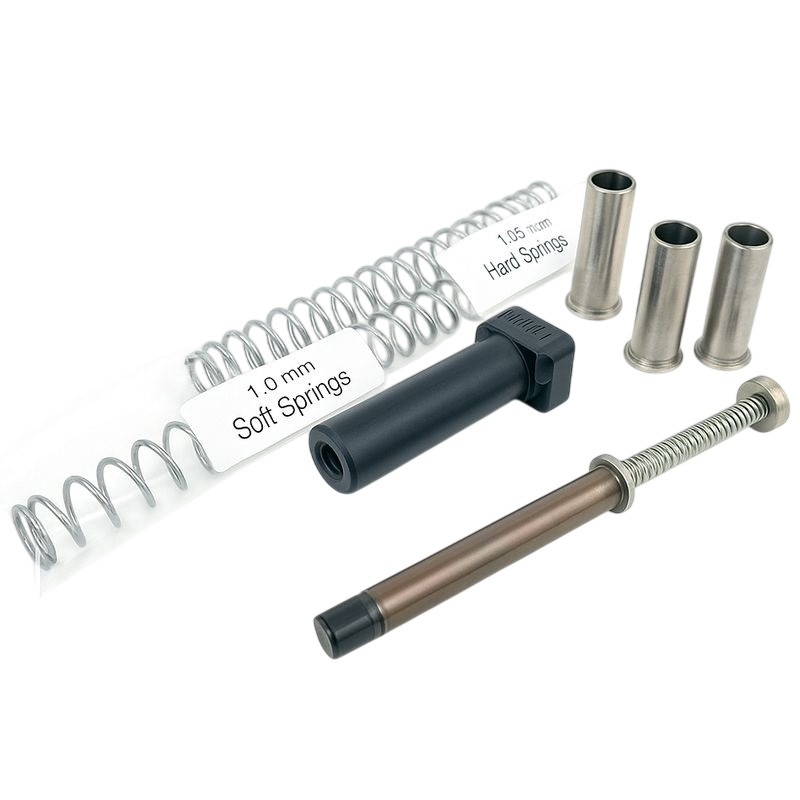

The DPM kit includes two complete sets of external springs, one set with 1.0 mm diameter wire and the other with 1.05 mm diameter wire.

When using the DPM Recoil Rod and springs, the ALUMINUM spring plug must always be installed
The ALUMINUM spring plug must always be installed when using the DPM Recoil Rod and springs.

Pound Ratings:

Slide in the battery (idle position)

Soft Springs 1.0 mm:

• Short spring: 2.5 kg - 5.5 lb
• Long spring: 3 kg - 6 lb

Standard Springs 1.05 mm:

• Short spring: 2.7 kg – 5.95 lb
• Medium spring: 3.2 kg - 7 lb
• Long spring: 3.7 kg - 8.15 lb

Total power (slide in fully open position):

•  Short Plug: 6 kg – 13.2 lb
•  Medium Plug: 8 kg – 17.6 lb
• Long Plug: 10 kg - 22 lb

General advantages:

• Faster aiming of the pistol at the target
• Improved rate of fire
• Protection for slides and frames
• Elimination of jams
• Significant reduction in recoil
• Better control and greater accuracy

Manufacturer’s statement:

**As we are a leader in recoil reduction technology, our product versions are subject to change (new designs with different springs, with or without plugs, washers, etc.) without prior notice.**

Important!Have any part replacements, modifications, alterations, etc., on your firearm performed by a specialized gunsmith.

*Follow the user manual included with the product.

**For more information, photos, instructions, and technical specifications, visit the manufacturer’s website : HERE
