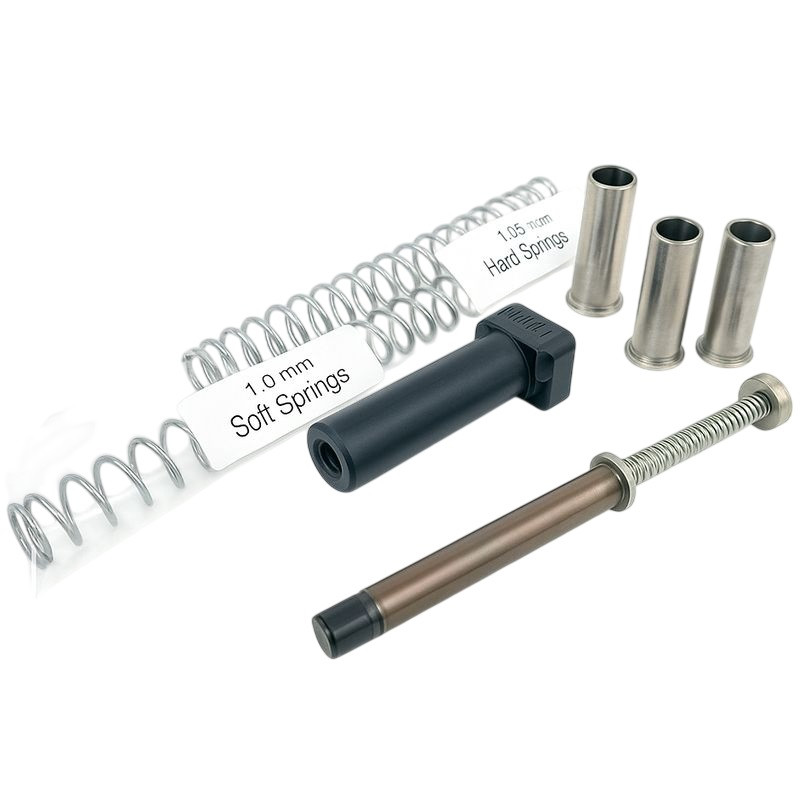

DPM KMR Recoil System for KMR Umbra L-02 & W-02 (X) 4.5-inch Barrel and W-02 Umbra 5-inch (MS-KMR/1 /400046)

NEW DPM mechanical recoil reduction system for the 4.5-inch KMR UMBRA L-02 and W-02 (X) barrels and the 5-inch W-02 UMBRA barrel – 15 user-selectable settings.

The DPM kit includes two complete sets of external springs, one set with 1.0 mm diameter wire and the other with 1.05 mm diameter wire.

When using the DPM Recoil Rod and springs, the ALUMINUM spring plug must always be installed.

The ALUMINUM spring plug must always be installed when the DPM Recoil Rod and springs are used.

Pound Ratings:

Slide on the battery (idle position)

Soft Springs 1.0 mm

• Short spring: 2.5 kg – 5.5 lb
• Long spring: 3 kg – 6 lb

Standard Springs 1.05 mm

• Short spring: 2.7 kg – 5.95 lb
• Medium spring: 3.2 kg - 7 lb
• Long spring: 3.7 kg – 8.15 lb

Total power (slide fully open) approx.

• Short Plug: 6 kg – 13.2 lb
• Medium Plug: 8 kg – 17.6 lb
• Long Plug: 10 kg – 22 lb

General advantages:

• Faster aiming of the pistol at the target
• Improved rate of fire
• Protection for slides and frames
• Elimination of jams
• Significant reduction in recoil
• Better control and greater accuracy

Manufacturer’s statement:

**As we are a leader in recoil reduction technology, our product versions are subject to change (new designs with different springs, with or without plugs, washers, etc.) without prior notice.**

Important!Have any part replacements, modifications, alterations, etc., on your firearm performed by a specialized gunsmith.

*Follow the user manual included with the product.

**For more information, photos, instructions, and technical specifications, visit the manufacturer’s website : HERE
