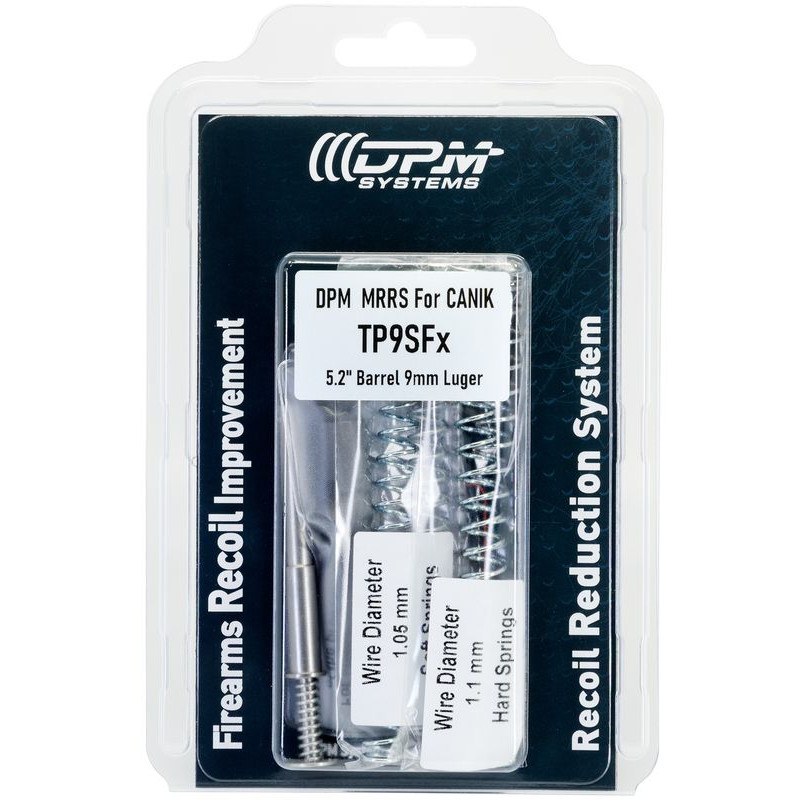

DPM Mechanical Recoil Reduction System for the DPM CANIK TP9 SFx 5.2" barrel.
The DPM mechanical recoil reduction system is a direct replacement for the standard recoil reduction rod and does not alter the pistol’s configuration.

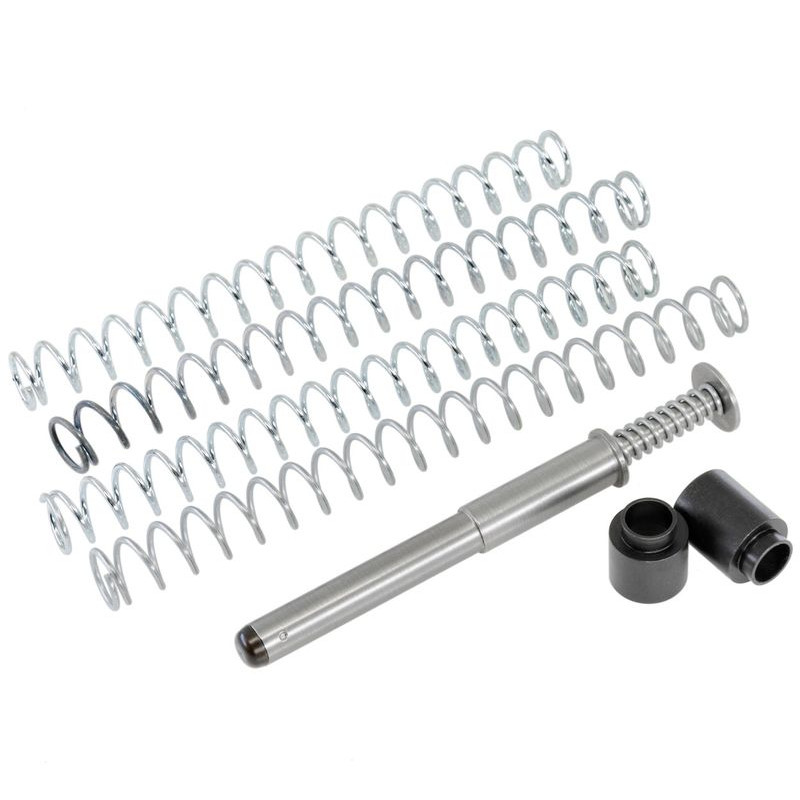

This system operates via a multi-spring, complex rod (three springs) that controls the pistol’s operation. The third spring, located inside the rod, controls the movement of the slide, preventing it from striking the frame.
When using the DPM recoil rod and springs, the spring plug must always be installed.
The spring plug must always be installed when the DPM Recoil Rod and springs are used.
Spring Force (measured in pounds)
Soft Springs 1.05mm (long set)
Slide onto the battery with the short plug
- Short Spring: 3.5 kg / 7.7 lb
- Long Spring: 3.8 kg / 8.4 lb
Slide onto the battery with the long plug
- Short Spring: 3.7 kg / 8.1 lb
- Long Spring: 3.8 kg / 8.8 lb
Standard Springs 1.10 mm(short set)
Slide onto the battery with the Short Plug
- Short Spring: 3.5 kg / 7.7 lb
- Long Spring: 3.8 kg / 8.4 lb
Slide onto the battery with the long plug
- Short Spring: 3.8 kg / 8.4 lb
- Long Spring: 4.2 kg / 9.3 lb
Total force (approx.) – Slide fully open position:
- Short Plug: 21 lb
- Long Plug: 24 lb
General advantages:
- Faster aiming of the pistol at the target
- Improved rate of fire
- Protection for slides and frames
- Elimination of jams
- Significant reduction in recoil
- Better control and greater accuracy
Manufacturer’s statement:
**As we are a leader in recoil reduction technology, our product versions are subject to change (new designs with different springs, with or without plugs, washers, etc.) without prior notice.**
Important!Have any part replacements, modifications, alterations, etc., on your firearm performed by a specialized gunsmith.
*Follow the user manual included with the product.
**For more information, photos, instructions, and technical specifications, visit the manufacturer’s website : HERE
