Level Right® Pro jig Real Avid AVLVLR-P

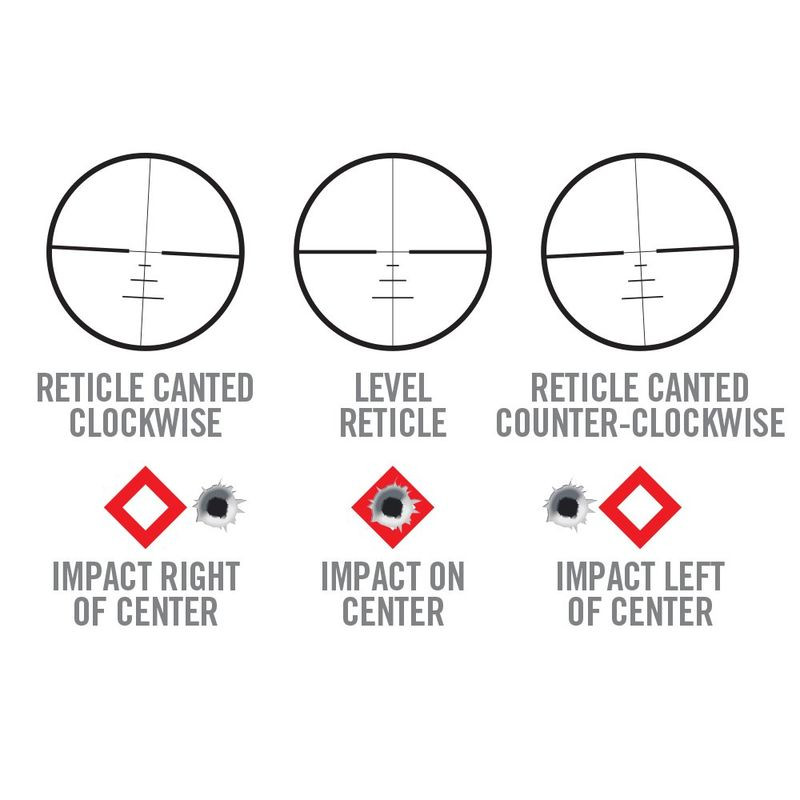

Level Right® Pro from Real Avid is a professional instrument that allows you to level a rifle scope mounted on a weapon. This is one of the most important things to take care of when mounting optics on a rifle or windshield - an improperly leveled scope will cause the shot to drift to the right or left.

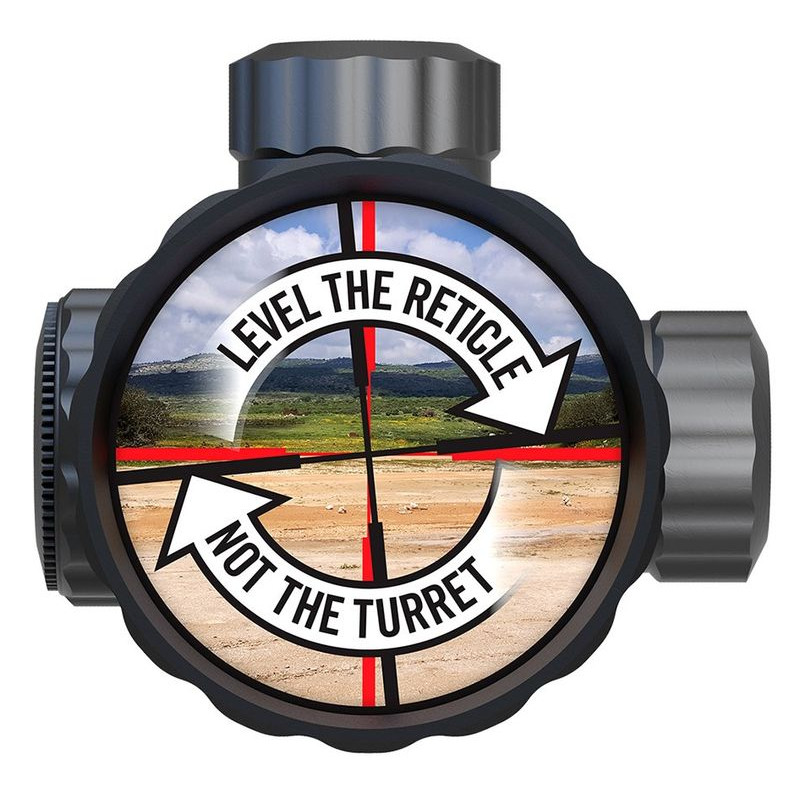

The shooting community over the years has developed a number of ways to deal with this problem - the most popular is to use two levelers, one mounted on the scope (usually on the turret) and the other on the barrel or bed. Unfortunately, this and other methods are not 100% effective, as the scope's turrets are not aligned with the aiming crosshairs in most cases.
The Level Right® Pro uses a simple-to-use but highly accurate system consisting of a leveled screen with a calibration reticle and an LED projector. The light stream from the projector is funneled through the scope's eyepiece so as to cast the shadow of the aiming crosshair on the screen. All you then need to do is align the line of the crosshairs with the reticle on the screen, tighten the mounting screws and you're done.
Features:
- Allows you to easily level the scope accurately on the weapon
- LED projector with special mount with level illuminates the aiming crosshair
- Tripod-mounted Precision Alignment Grid screen with reticle allows you to level the crosshair
- Designed for use with bolt-action and lever-action rifles with an exposed barrel and carbines having a Picatinny top-mounting rail
- The use of a gunsmith's tripod and a torque wrench during leveling is recommended
- Weight (kit): 864 g
Kit contents:
- Precision Alignment Grid screen
- Mounting bracket with spirit level for projector mounting
- Mounting bracket for Picatinny rail
- Mounting bracket for rifle barrel
- Mini tripod for setting up the screen
- Rechargeable LED projector
- USB cable for charging the projector
Instructional video:
