OUTERIMPACT Mounting plate for collimator for Steyr A1 Series / M.R.A. (OTL-RDM-STYR01a)
Mounting plate with a "dovetail" (for pistols without OR, in place of a combinator) from the American company Outerimpact for mounting a collimator.
Compatible pistol: Steyr A1 and A2
- S-A1
- C-A1
- M-A1
- L-A1
- M9-A1
- L9-A2
- M9-A2
- C9-A2
Included:

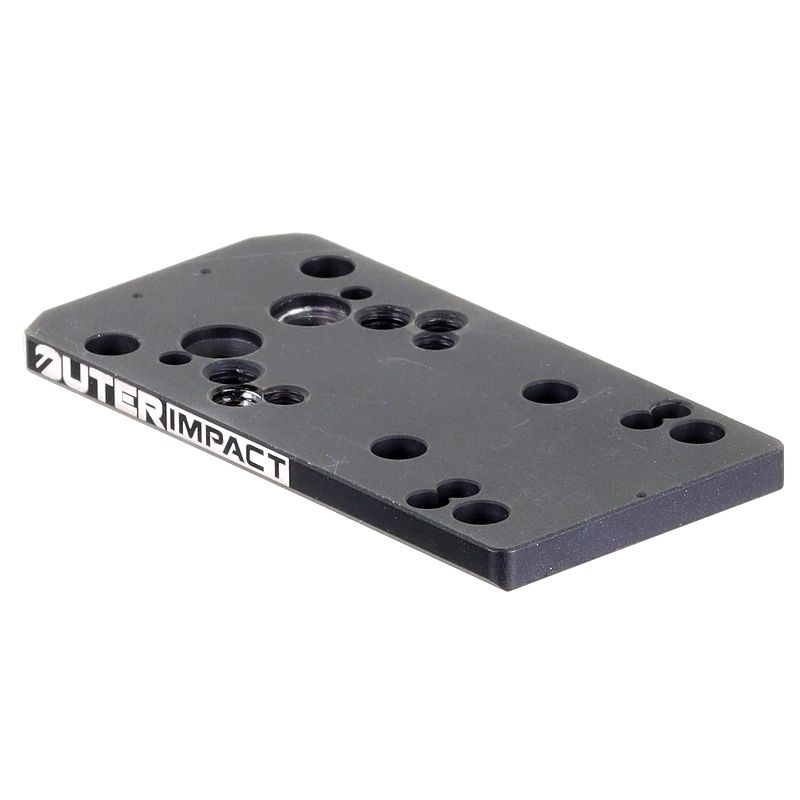

- (1) Plate for collimator

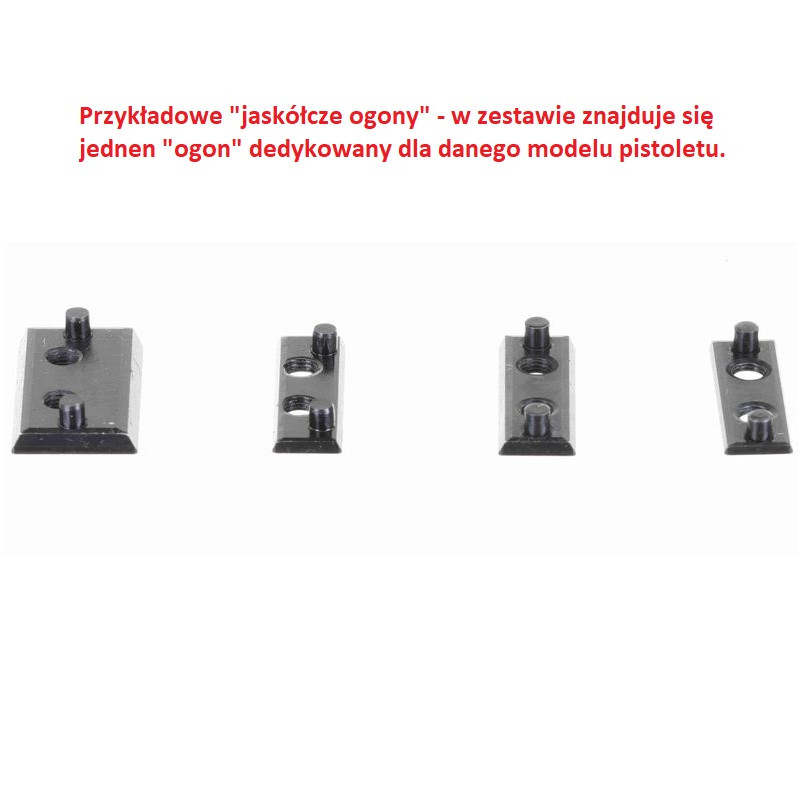

- (1) "Swallowtail" for Styer
- (2) 6-48 Torx head screws? Weaver T-10
- (2) Pins for adjusting the sighting instruments
- (2) M3 x 8 mm flat head screws
- (2) M3 x 9 mm flat head screws
- (2) Flat head screws M3 x 6 mm
- (2) M3 x 6 mm allen head screws
- (2) 6-40 Flat head screws - RMR
- (2) Round head screws M4 X 10 mm
Compatible collimators:
- Trijicon RMR/SRO - some weapons may experience ejection issues using the SRO
- Docter
- Insight MRDS
- Eotech MRDS
- Leupold Delta Point
- Leupold Delta Point Pro
- Vortex Razor
- Vortex Viper
- Vortex Venom
- Vortex Defender CCW
- Burris Fast Fire - 2 / 3 / 4
- CMORE RTS & STS
- Shield RMS - requires a purchase of these screws
- Holosun - 507 "C"/407 "C" V1 versions - requires a purchase of 6-40 Screws For Holosun V1 Red Dot
- Holosun - 507 "C"/407 "C" V2 and X2 versions - screws included in OuterImpact Screw Pack
- Holosun - 507 "K"/407 "K" models require the Micro adapter. Micro adapters are not available for all firearms
- Holosun - 508 "T"
- Holosun - 507 Comp
- UTG Reflex Micro Dot
- TruGlo - Tru-Tec
- Sig - Romeo 3 / Romeo 3 Max / Romeo 3 XL
- Crimson Trace - CTS-1250 / CTS-1550 / CT RAD / CT RAD Micro
- Springfield Hex - Dragonfly - must also use OEM provided spacer plate
- Bushnell - RXS-100 and 250
- Kahles - Helia RD
- Creative XP - Glass Eagle - requires a purchase of M3-0.5 x 10MM screws
- Noblex - NV G
- SOUSA DARC Micro - requires a purchase of M4 x 8mm Socket Head screws
- Sightmark - Mini Shot
- Athlon - Midas EDC
- Vector Optics - Frenzy X
- ADE - RD3-006 B1S Huracan
- Osight - C
Necessary tools (not included): T-10 Torx wrench, torque wrench, sight puller, thread glue.
IMPORTANT when mounting the collimator !!!
Using too much force when tightening the screws will break the threads ! Therefore, use a torque wrench for this purpose !
On the manufacturer's website you will find the installation instructions and screw tightening torque.
You can find more information, photos and technical data on the manufacturer's website: TU
Note ! The assembly of the plate should be done by an experienced gunsmith !
*Follow the instructions included with the product. In the tab above you will find general installation instructions, verify the torques with the instructions of the purchased insert.
And, how does the plate assembly look like ? See the example of CZ Shadow 2 Orange:
