DPM GLOCK Recoil System for Glock 17-22-31-37 Gen. 1-3 (MS-GL/10 / 400002) Soft Version
DPM Mechanical Recoil System for GLOCK 17-22-31-37 GENS 1-3 Pistols / SOFT VERSION.
The DPM recoil reduction rod (soft version) is designed to work with any ported slides and rifled barrels. It is also compatible with low-power ammunition.
The system operates via a multi-spring rod (three springs) and controls the firearm’s operation. The third spring, located within the rod, controls the slide’s movement, preventing it from striking the frame.

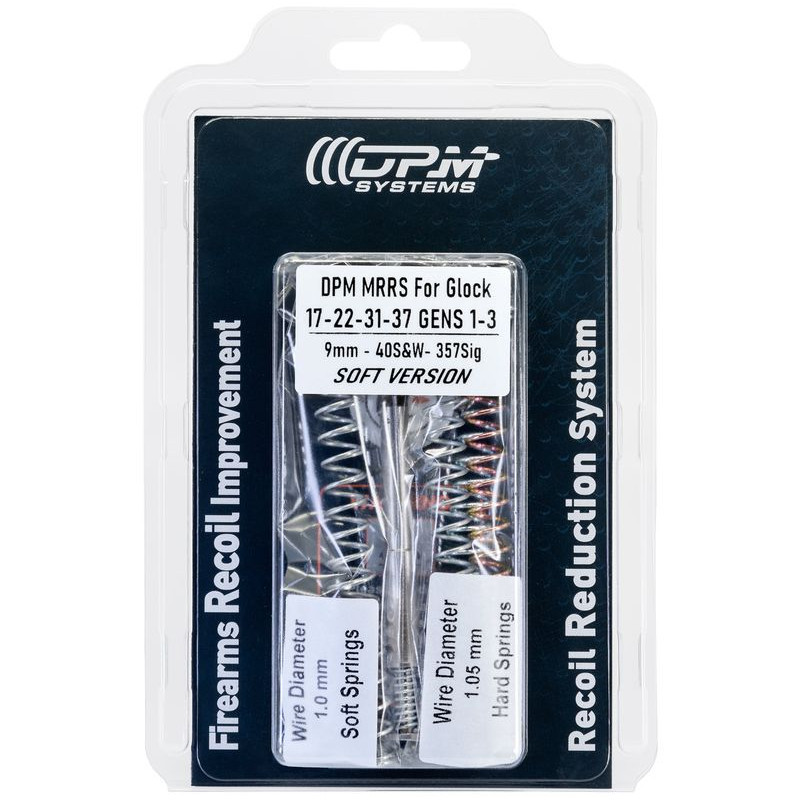

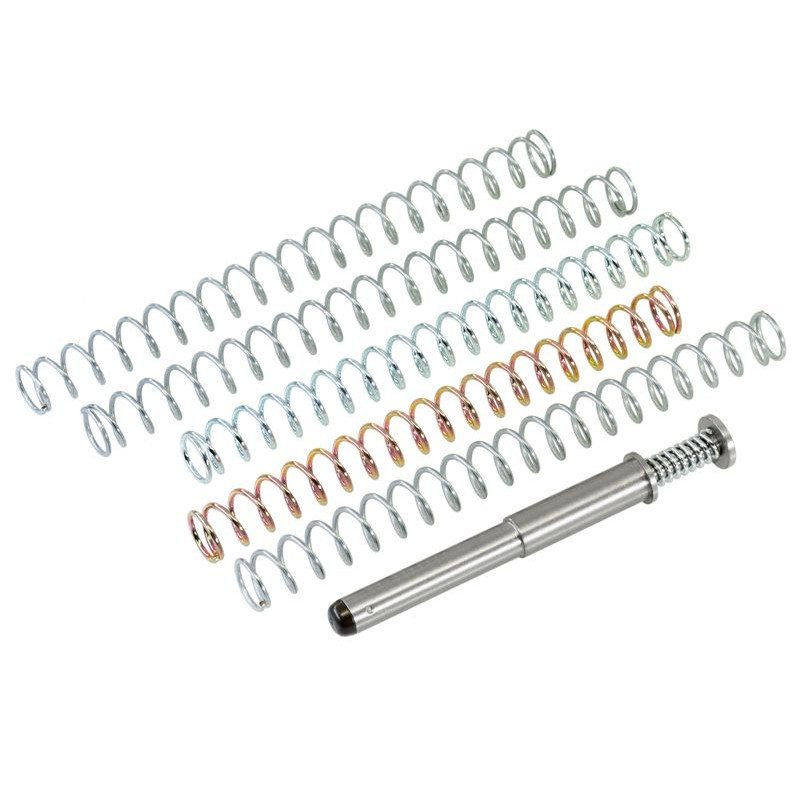

The set includes 5 external springs: 2 with a wire diameter of 1.0 mm (long set) and 3 with a wire diameter of 1.05 mm (shorter set), all with varying power.
Information from the manufacturer
**As we are a leader in recoil reduction technology, our product versions are subject to change (new designs with different springs, with or without plugs, washers, etc.) without prior notice.**
The long set (1.0 mm WD) is softer than the short set (1.05 mm WD). Below is a table of their power ratings.
Power Rates
Soft Springs 1.0mm (long set)
Slide on the battery
- Short spring: 3.5 kg / 7.7 lbs
- Long spring: 3.9 kg / 8.6 lbs
- Stronger springs 1.05 mm (short set)
Slide onto the battery
- Short: 4 kg / 8.8 lbs
- Medium: 4.4 kg / 9.7 lbs
- Length: 4.7 kg / 10.3 lbs
Fully open position - total force: 7 kg / 15.5 lbs (approximately)
General advantages:
- Faster follow-up shots
- Increased rate of fire
- Protection of the bolt and frame
- Elimination of jams
- Significant reduction in recoil
- Better focus during double-tapping
- Better control and greater accuracy
- Multi-spring system
For more information and photos, visit the manufacturer’s website : HERE
*Follow the user manual included with the product.
Important! Haveanypart replacements, modifications, alterations, etc., performed on the firearm by a specialized gunsmith.
