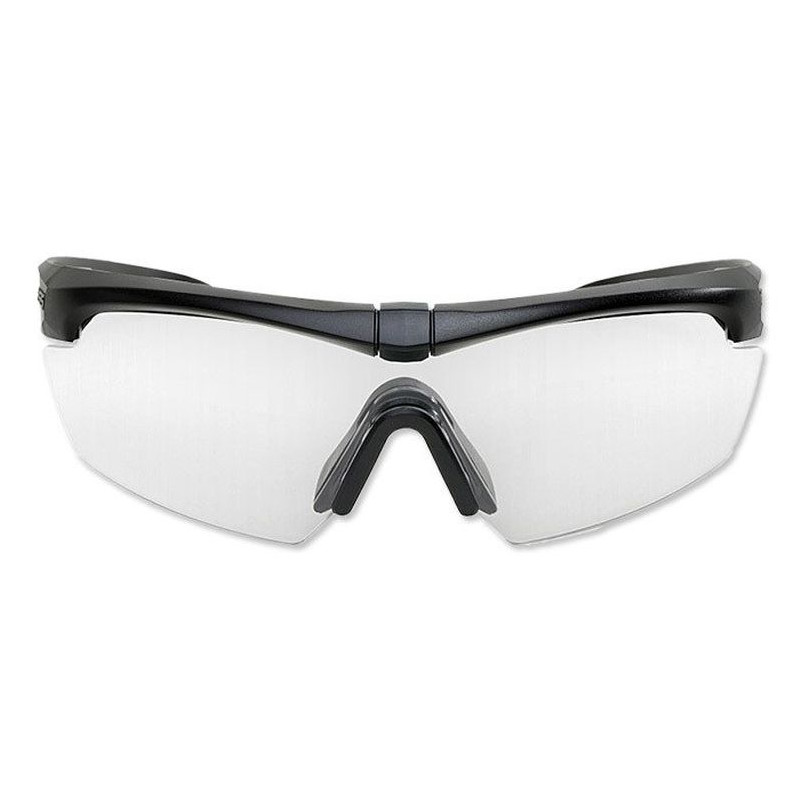

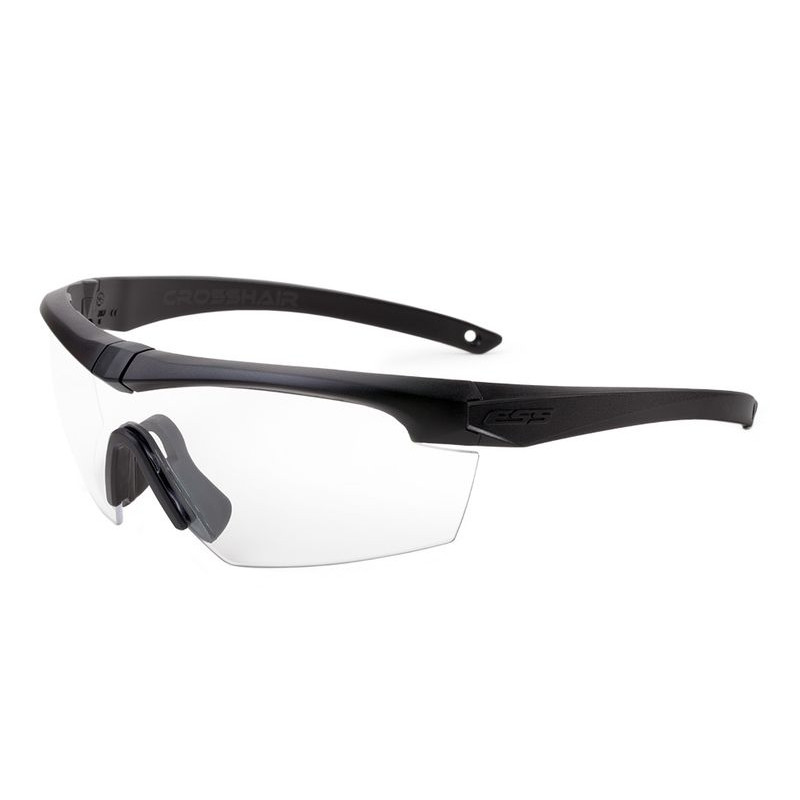

Crosshair™ ballistic goggles, part of the Cross-Series™ product line, are an economical version of the Crossbow™ model. Like their predecessor, they feature scratch-resistant, easy-to-change ballistic visors that do not distort the image across the field of view and provide 100% UVA and UVB protection.
In developing the new frames, the manufacturer took into account suggestions from users. They resulted in goggles that fit every head, guaranteeing exceptional wearing comfort devoid of any pressure points.
SPECIAL FEATURES:
- Cross-Series™ compatibility - convertible to the Crossbow® visor with aniti-fog protection or to the ultra-thin Suppressor™ frames, which ensure perfect compatibility with hearing protectors and communication systems
- Damage- and deformation-resistant ballistic first-optical-grade 2.4 mm thick polycarbonate visor
- Viewfinder made with ESSOPTICS™ standard, free from any distortion and guaranteeing 100% UVA and UVB protection
- ToughZone™ technology to protect the visor from scratches
- DedBolt™ snap-on system for easy and very fast replacement of the visor - it is mounted by means of contoured notches on its ends and a hole in the center part
- Flexible frames with Tri-Tech Fit™ technology for maximum comfort and no pressure points
- Comfortable, replaceable composite-silicone nose pad
- Possibility to install an additional elastic strap to secure the glasses from getting lost
- U-RX™, P-2B™ and Vice™ corrective inserts available
SPECIFICATIONS:
- Visor material: polycarbonate
- Visor thickness: 2.4 mm
- Viewfinder color: transparent, visible light transmission: 90%
- Frame color: black
- Viewfinder dimensions:
- Length: 142 mm
- Width at widest point: 47.9 mm
- Width at nose piece mounting point: 15.3 mm
- Spacing of side mounting holes: 124.4 mm
- Frame dimensions:
- Width at widest point: 148 mm
- Width at temple end: 95.5 mm
- Width at hinge point: 141 mm
- Thickness of the earcups: 3 - 4 mm
- Weight of complete glasses: 34g
- Weight of single visor: 16g
- Nose piece weight: 4g
- Frame weight: 14g
FILTERS: 100% UVA/UVB
STANDARDS (general information - always check the technical parameters with the included instructions !)
- complies with the American civilian standard ANSI Z87.1 - 2015
- complies with the US army standard MIL SPEC MIL-PRF-32432
- cE quality mark, complies with European standards EN 166:2001, EN 170 and EN 172
- the frames comply with the European standard CE EN 166 FT
- visor complies with European standard CE 5-3.1 FT K N
- complies with US Federal OSHA
*Important ! Follow the instruction manual attached to the product. The descriptions contained on the website may be incorrect or outdated ! Therefore, for your safety, always check the parameters written in it, the standards and the purpose for which they can be used !
KIT INCLUDES:
- Crosshair™ frames
- Clear transparent visor

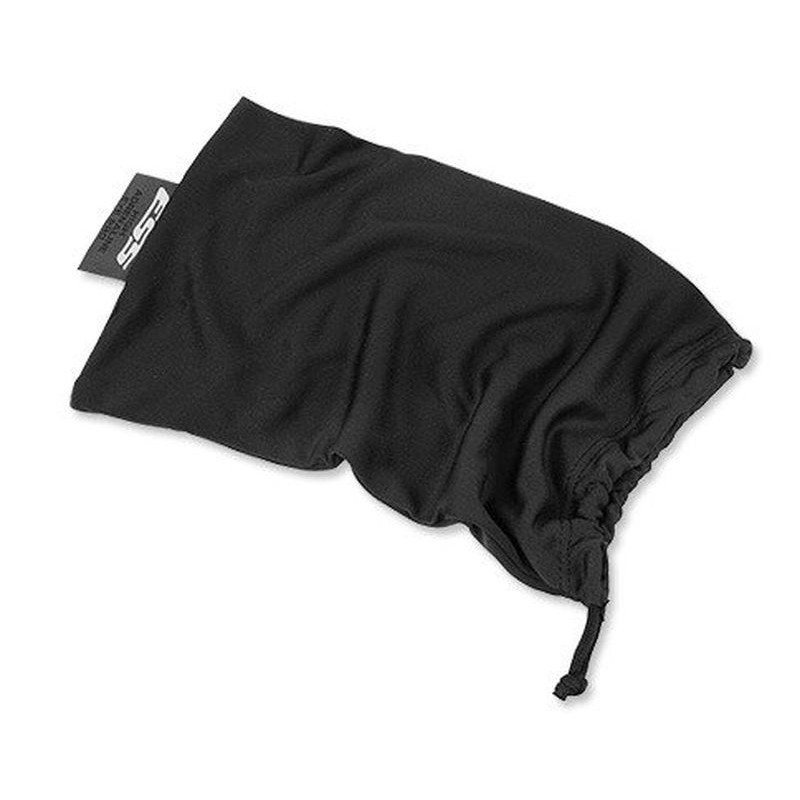

- Black colored pouch made of microfiber, designed for storing and cleaning glasses
ADDITIONAL VISOR COLORS AVAILABLE:
- Transparent (Clear) - VLT: 89%
- Yellow - high contrast (Hi-Def Yellow) - VLT: 85%
- Amber - high contrast (Hi-Def Copper) - VLT: 32%
ESS Eyepiece VIEWERS & SIZES CARD
Please see the ESS Eyewear Visions and Sizes Chart presenting:
- the value of the visible light transmission coefficient (VLT) for all models of the company's visors - it is helpful in selecting the color of the visor for the environment in which it will be used
- information about the impact resistance of ESS eyewear - that is why it is worth choosing ESS brand eyewear
- dimensions of frames of all models of ESS eyeglasses - useful in optimal adjustment of glasses to the size and shape of the user's face
- information about the completion of ESS eyewear sets - One?, 3LS?, 2X? - these designations will no longer be a mystery
ABOUT ESS COMPANY
ESS (Eye Safety Systems) is an American company specializing in the manufacture of safety glasses and goggles. Its products are used wherever ballistic eye protection of the highest degree is required. ESS products are incredibly popular among soldiers, firefighters, medical and rescue services around the world.
