DPM CZ Ejection System for CZ TS Orange & TS 2 / 9 mm - 12 Combinations (MS-CZ/21 / 105025)
DPM Mechanical Recoil Reduction System for CZ TS 2 and TS Orange 9 mm - 12 combinations.
When installing the DPM mechanism, the user must remove the rubber washer.
The DPM mechanical recoil reducer is a direct replacement for the standard recoil reduction rod and does not alter the pistol’s configuration.

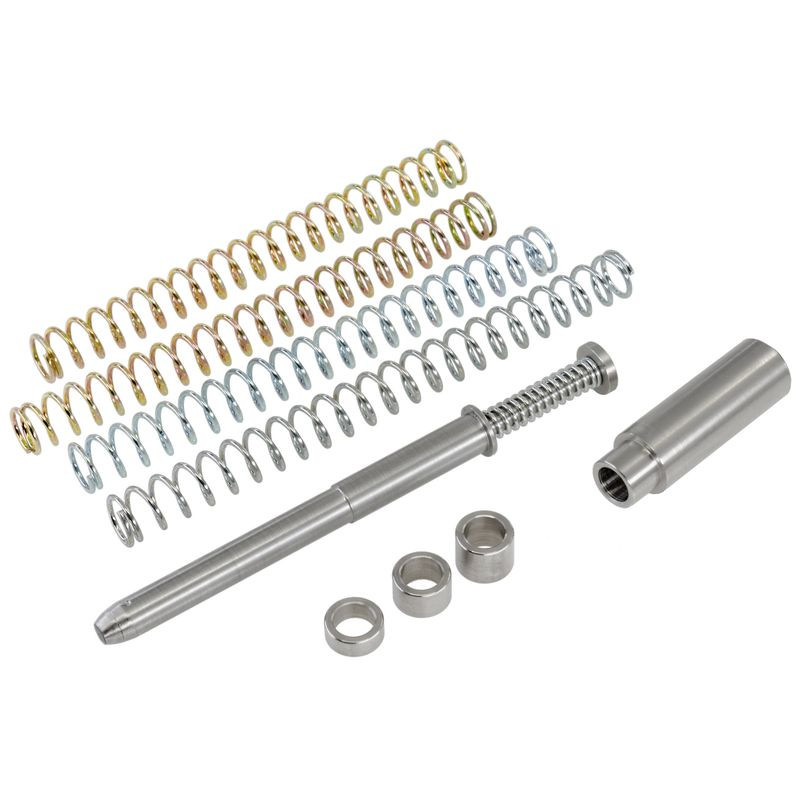

This system operates via a multi-spring rod (3 springs) and controls the pistol’s operation. The third spring, located inside the rod, controls the movement of the slide, preventing it from striking the frame. The system includes 4 springs with different tensions and 3 spacer washers of different sizes, allowing the user to precisely adjust the pressure on the pistol’s slide in both the open and locked positions.
- The wire diameter of the springs is 1.0 mm
The 2 Gold Springs are softer, and the 2 Silver Springs are stiffer.
Spring Force (measured in pounds)
Slide in battery:
- S1 Gold Short (23.5 coils): 5.7 lb
- S2 Gold Long (25 coils): 6.6 lb
- S3 Silver Short (23.5 coils): 7.3 lb
- S4 Silver Long (25 coils): 8.4 lb
Slide fully open:
Note: The spacers are compatible only with the included DPM Spring Plug
- Short Spacer: 15 lb (approx.)
- Medium Spacer: 19 lb (approx.)
- Long Spacer: 23 lb (approx.)
General advantages:
- Faster aiming of the pistol at the target
- Improved rate of fire
- Protection for slides and frames
- Elimination of jams
- Significant reduction in recoil
- Better control and greater accuracy
Manufacturer’s statement:
**As we are a leader in recoil reduction technology, our product versions are subject to change (new designs with different springs, with or without plugs, washers, etc.) without prior notice.**
Important!Have any part replacements, modifications, alterations, etc., on your firearm performed by a specialized gunsmith.
*Follow the user manual included with the product.
**For more information, photos, instructions, and technical specifications, visit the manufacturer’s website : HERE
