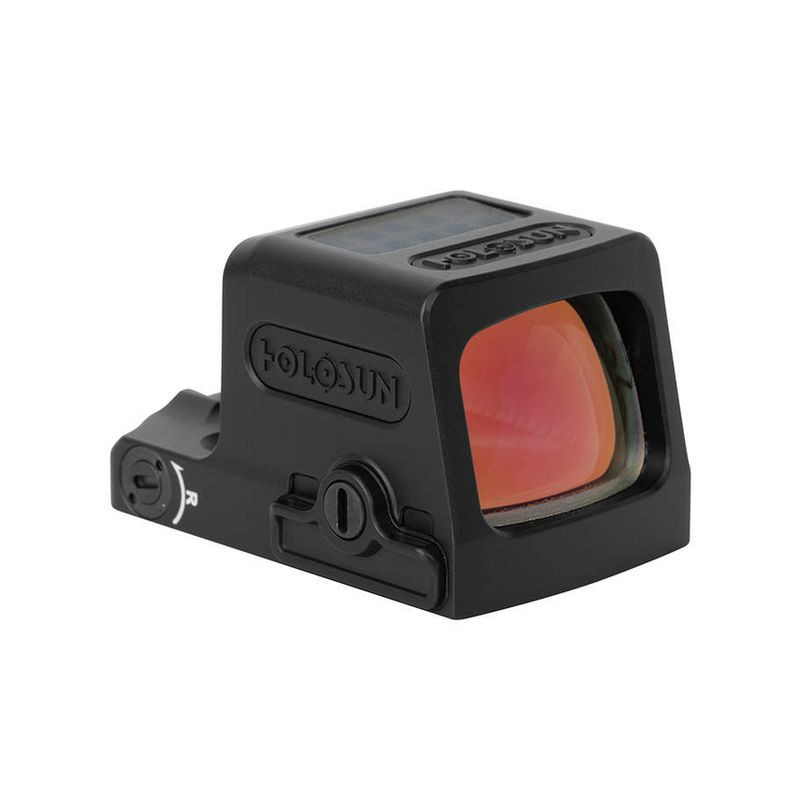

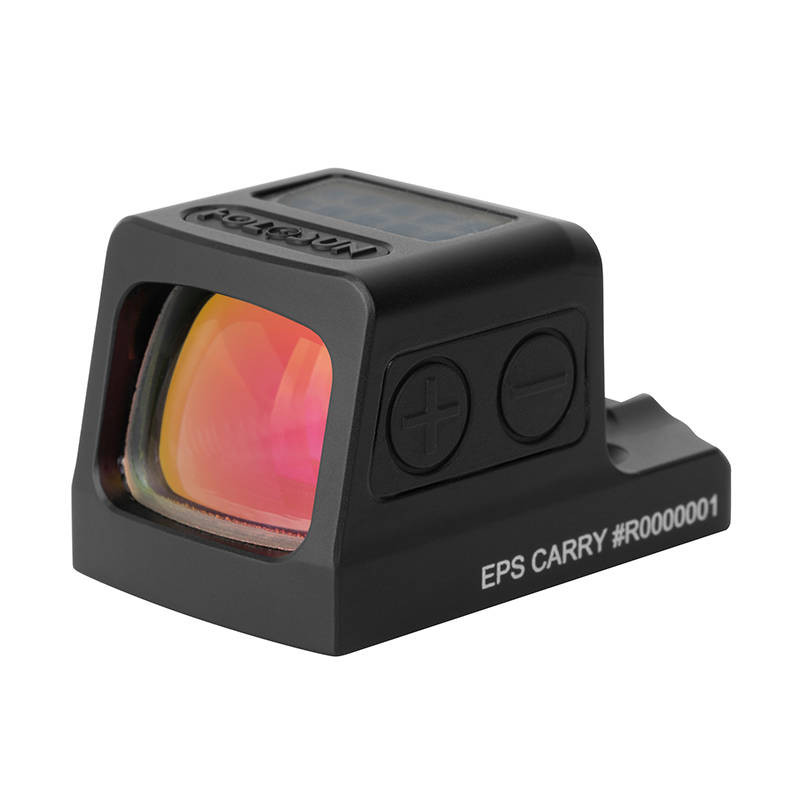

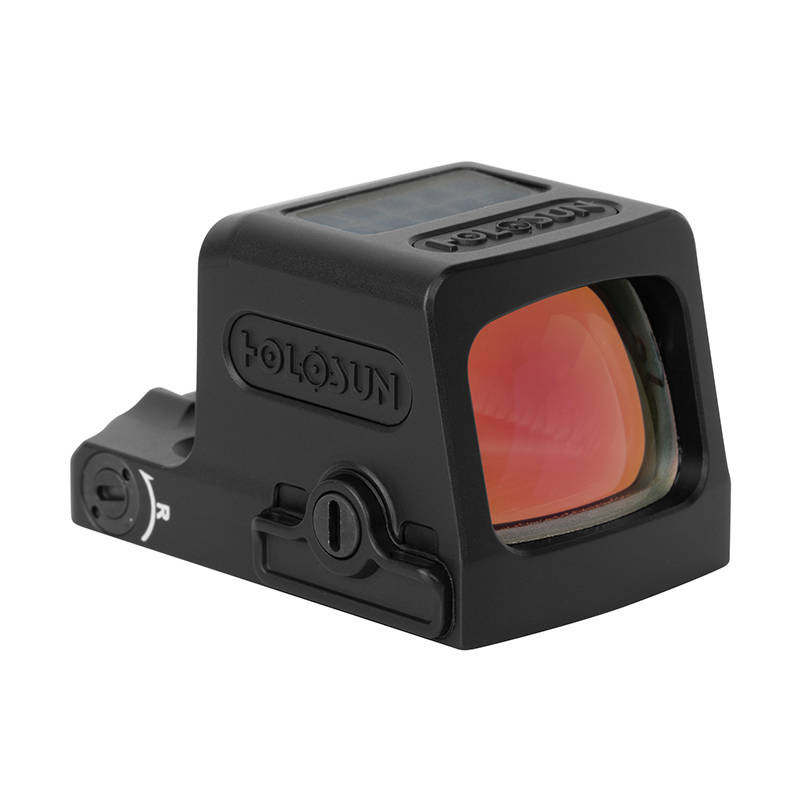

A collimator characterized by a compact, closed and low-profile design. Fitted especially to pistols with narrower locks, designed for concealed carry. The size of the lens allows comfortable observation with both eyes open, and the low mounting allows emergency use of mechanical sighting devices. It is adapted for mounting on a Holosun K-series (modified RMS) type plate.
The sight has a target mark possible in 3 configurations consisting of a 2 MOA dot with a 32 MOA surround, or a dot or surround alone. It has 12 brightness levels: 8 daytime and 4 nighttime. The power source is a single CR-1620 battery supplemented by a solar cell. The backlight has automatic brightness level adjustment, a "Shake Awake" function and memory of the last selected brightness setting. The sign is vertically and horizontally adjustable and parallax-free. The body is made of aluminum and has an IPX8 waterproof rating.
Features:
- Compact collimator sight with a compact, enclosed design
- Small size combined with great capabilities and great durability
- Suitable for slim-line pistols with a narrower frame
- Also fits full-size pistols equipped with the appropriate adapters
- Adapted to Holosun K-series (modified RMS) type mounting plate
- Extremely low height allows emergency use of original sighting instruments
- Multiple Reticle System - choice of one of three aiming marks
3 target marks in red to choose from: 2 MOA dot with 32 MOA surround, dot alone or surround alone - Vertical and horizontal adjustment of the mark
- 12 levels of mark illumination: 8 daytime and 4 nighttime
- Easy operation with two buttons
- Automatic brightness adjustment
- Adapted for use when using night vision
- No parallax
- Powered by a CR1620 battery supplemented by a C-series solar cell
- Long battery life, extended by the use of standby system and solar power supply
- Automatic exit from standby mode when shock is detected
- Aluminum body with IPX8 protection rating
- Will work well for sports, professional and recreational use
Specifications:
- Dimensions: 24 x 41 x 27 mm
- Lens size: 15 x 20 mm
- Weight: 28 g
- Magnification: 1x
- Distance from the eye: Unlimited
- Coatings on the lens: Yes, multi-coated
- Light source: LED
- Light beam length: 650 nm
- Type of aiming point:
- Dot
- Circle
- Dot circle
- Target point size:
- Dot 2 MOA
- Circle 32 MOA
- Mark color: Red
- Illumination levels: 12 - 8 day / 4 night
- Switchable sight: Yes
- Parallax: No
- Target mark adjustment: Yes, X/Y
- Adjustment range: ± 30 MOA
- Adjustment value per click: 1.5 MOA
- Automatic brightness adjustment: Yes
- Memory function: Yes
- Power source: 1x CR-1620 battery
- Operating voltage: 3 V DC
- Battery socket: Side
- Battery life: 50000 h
- Solar cell: Yes
- Shake Awake function: Yes
- Case material: Anodized aluminum
- Housing type: Closed
- Mounting plate: Holosun K-series (modified RMS)
- Mounting type: Torx screws
- Mounting: Low
- Protection class: IPX8
- Operating temperature: -30°C to 60°C
- Storage temperature: -40°C to 70°C
- Vibration resistance: 5000 G
- Case color: Black
Kit components:
1x EPS Carry MRS collimator
1x RMSC adapter plate
1x lens cleaning cloth
1x Torx T10 wrench
1x set of long mounting screws
1x set of short mounting screws
1x CR1632 battery
User manual
Warranty brochure
The company Master Jet (Hobbymax) provides a warranty for a period of: (private purchase - receipt: 2 years, purchase for a company - invoice 1 year) in many models of collimators the company Holosun extends the warranty*, in this case the company Master Jet is no longer a party in the event of a possible claim, and the guarantor and party becomes directly the company HOLOSUN.
*Note !!! After purchase, read the warranty terms and conditions !!!
For more information and photos, please visit the HOLOSUN POLAND website : TU
**Follow the instructions attached to the product and applicable laws.
FAQ:
The lens in my collimator is crooked, should it be like this?
Yes, for closed collimators where the emitter is placed at 4 o'clock, the lens must be skewed to properly reflect the light towards the user's eyes.
